Installing a ladder rack or shelving into your Ford Transit Low Roof is essential for transporting equipment, maintaining high productivity, and organization.
But installing an award-winning, ergonomically designed, patented Prime Design solution not only improves carrying capabilities and efficiency; it also lowers injury risks and worker’s compensation claims while eliminating the costs, stress, downtime, and business pressures associated with work-related injuries.
ErgoRack
It’s simple math: Healthy Workers + Thoughtfully Made Equipment = an Efficient Workplace.

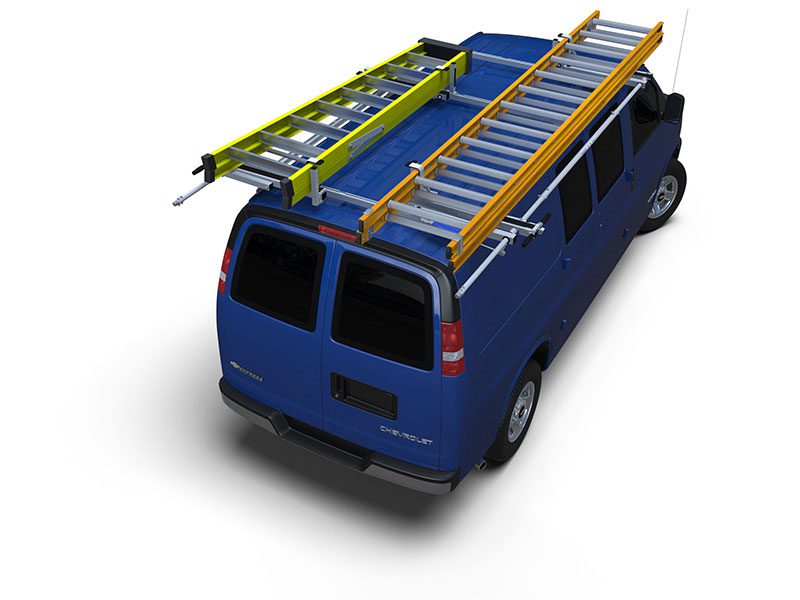

ErgoRack eliminates the strain from unloading and stowing heavy ladders onto work vehicles.
This regularly performed operation can get cumbersome, especially when factoring in ladder weights, ladder lengths, operator body types, and vehicle heights. Quite often, a worker takes the unnecessary risk of climbing on a vehicle’s tire or bumper to complete this task.
Prime Design took an ergonomic approach to create a solution that puts work ladders at easily accessible heights, allows for smooth and controlled movements without placing undue stress on the user’s body, and enables deployment or stowage in seconds!
ErgoRack Configurations – Ford Transit Low Roof
Modular (-M) and Hybrid Modular (-HM) are available depending on configuration.
| Configuration | Vehicle Wheelbase | Vehicle Height | Streetside Feature | Curbside Feature |
| BB-FT-78 | 130 IN (Regular) or 148 IN (Long) | 84 IN (Low) | End Stop | End Stop |
| BB3-FT-78* | 130 IN (Regular) or 148 IN (Long) | 84 IN (Low) | End Stop | End Stop |
| BC-FT-78 | 130 IN (Regular) or 148 IN (Long) | 84 IN (Low) | End Stop | Clamp |
| BR-FT-78 | 130 IN (Regular) or 148 IN (Long) | 84 IN (Low) | End Stop | Rotation |
| CC-FT-78 | 130 IN (Regular) or 148 IN (Long) | 84 IN (Low) | Clamp | Clamp |
| CC3-FT-78* | 130 IN (Regular) or 148 IN (Long) | 84 IN (Low) | Clamp (3 CBR) | Clamp |
| CR-FT-78 | 130 IN (Regular) or 148 IN (Long) | 84 IN (Low) | Clamp | Rotation |
| CR3-FT-78* | 130 IN (Regular) or 148 IN (Long) | 84 IN (Low) | Clamp (3 CBR) | Rotation |
| RR-FT-78 | 130 IN (Regular) or 148 IN (Long) | 84 IN (Low) | Rotation | Rotation |
| RR3-FT-78* | 130 IN (Regular) or 148 IN (Long) | 84 IN (Low) | Rotation (3 CBR) | Rotation |
*Three crossbar rack
Crossbars can be spaced at 4 & 5 feet for 3 Crossbar and 6, 7, or 8 feet for 2 Crossbar. Contact Prime Design customer service for application specific questions. Check the vehicle manufacturer’s recommendation for roof capacity weight limits. A wide range of accessories are available including conduit carriers, lighting mounts, and more.
Van Crossbar Spacing and Ladder Size Guide
| Crossbar Spacing | Step Ladder Size | Extension Ladder Size |
| 4 ft spacing | 6 – 8 ft. | 16 – 20 ft. |
| 5 ft spacing | 8 – 10 ft. | 16 – 24 ft. |
| 6 ft spacing | 8 – 12 ft.** | 16 – 28 ft. |
| 7 ft spacing | 10 – 12 ft.** | 20 – 32 ft. |
| 8 ft spacing | 10 – 12 ft.** | 20 – 36 ft. |
**12 ft. step ladders may require an extended upper add-on component

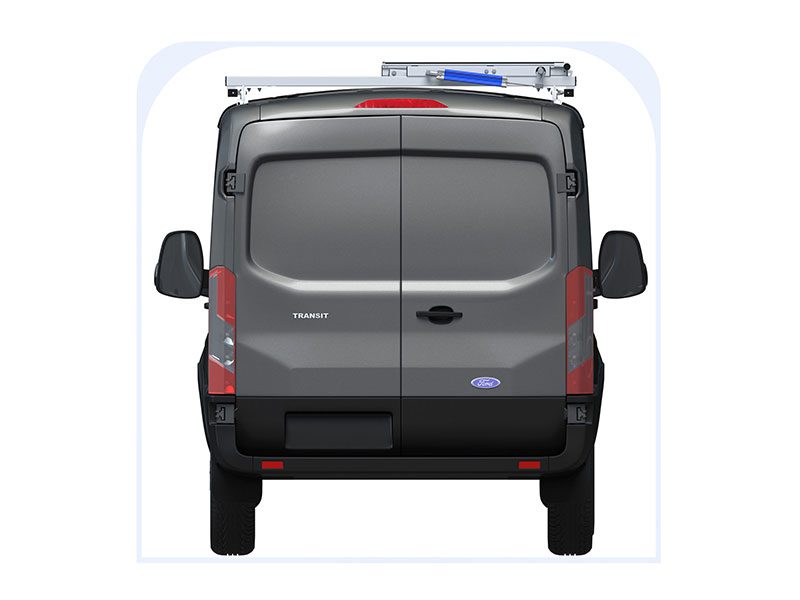

ErgoRack – Low Profile
It’s simple math:
Healthy Workers + Thoughtfully Made Equipment + Ship-Thru = an Efficient Workplace.
Ensure consistent, quality, professional installation by an original upfitter, simplify delivery, and cut costs with the ErgoRack Low Profile.
The ladder rack made with the operator’s well-being in mind is available in a low-profile edition that makes it easy to transport in narrow rail cars once installed.
Eliminate strains from unloading or stowing heavy ladders onto work vehicles as well as strains from installation and delivery in one fell swoop with the ErgoRack Low Profile.
ErgoRack Low Profile Models – Ford Transit Low Roof
| Model | Streetside Feature | Curbside Feature | Step / Extension Ladder Sizes | Wheelbase Length | Roof Height | Crossbar Spacing |
| VRR-FT21G-ST | Rotation w/ Slide | Rotation w/ Slide | 8-12’*/16-28′ | 130″ (Regular) | 84” (Low) | 6′ |
| VRR3-FT21G-ST** | Rotation w/ Slide | Rotation w/ Slide | 8-12’*/16-28′ | 130″ (Regular) | 84” (Low) | 4-6′ |
| VRR-FT31G-ST | Rotation w/ Slide | Rotation w/ Slide | 10-12’*/20-36′ | 148″ (Long) | 84” (Low) | 8′ |
| VRR3-FT31G-ST** | Rotation w/ Slide | Rotation w/ Slide | 10-12’*/20-36′ | 148″ (Long) | 84” (Low) | 4-8′ |
*12 ft. step ladders may require an extended upper add-on component
**Three crossbar rack
Notes:
All racks include a removable ratchet handle
Shipment includes: Factory assembled rotation assembly (Palletized), Ship-thru base (Box #1), and a Ship-thru box (Box #2)
One (1) pallet can accommodate up to 10 double-rotation ErgoRack Low Profile racks
Contact Prime Design customer service team for application specific questions
Check the vehicle manufacturer’s recommendation for roof capacity limits
AluRack
Avoid aggravation and accidents when offloading or stowing cumbersome cargo with Prime Design’s AluRack.
Whether it’s plywood, drywall, ladders, pipes, or recreational equipment, AluRack supports the bulkiest loads in all weather conditions and maintains secure placement.
Though AluRack’s aluminum build makes it lighter than traditional steel racks, it still boasts the ability to carry heavy cargo. Its fast installation process utilizes factory mounts, so your vehicle’s surfaces are kept fully intact.
Combine AluRack with any of our compatible accessories to suit your occupational needs.
AluRack Models – Ford Transit
| Clear Anodized Models | Black Anodized Models | Vehicle Wheelbase | Vehicle Height | Crossbar Quantity | Crossbar Width |
| AR1908 | AR1908-BLK | 130 IN | 84 IN | 8 | 67″ |
| AR1909 | AR1909-BLK | 148 IN | 84 IN | 8 | 67″ |
| AR1910 | AR1910-BLK | 130 IN | 101 IN | 8 | 67″ |
| AR1911 | AR1911-BLK | 148 IN | 110 IN | 8 | 67″ |
| AR1912 | AR1912-BLK | 148 IN | 101 IN | 8 | 67″ |
| AR1913 | AR1913-BLK | 148 IN XL | 110 IN | 8 | 67″ |
Rear Door Ladder
Avoid aggravation and accidents when offloading or stowing cumbersome cargo with Prime Design’s AluRack.
Whether it’s plywood, drywall, ladders, pipes, or recreational equipment, AluRack supports the bulkiest loads in all weather conditions and maintains secure placement.
Though AluRack’s aluminum build makes it lighter than traditional steel racks, it still boasts the ability to carry heavy cargo. Its fast installation process utilizes factory mounts, so your vehicle’s surfaces are kept fully intact.
Combine AluRack with any of our compatible accessories to suit your occupational needs.
| Vehicle | Roof Height | Wheelbase | Ladder Length | Number of Rungs | Weight | Model |
|---|---|---|---|---|---|---|
| Ford Transit | 84″– Low | All | 54″ | 5 | 16 lbs. | AAL-8010 |
| Ford Transit | 101″– Medium | All | 72″ | 7 | 18 lbs. | AAL-8009 |
| Ford Transit | 110″– High | All | 78″ | 7 | 19 lbs. | AAL-8011 |
| Mercedes Sprinter | 99″– Standard | All | 66″ | 6 | 16 lbs. | AAL-8004 † |
| Mercedes Sprinter | 111″– High | All | 78″ | 7 | 18 lbs. | AAL-8003 † |
| Nissan NV Cargo | 84″– Low | All | 54″ | 5 | 16 lbs. | AAL-8013 |
| Nissan NV Cargo | 106″– High | All | 78″ | 7 | 18 lbs. | AAL-8014 |
| RAM ProMaster | 90″– Low | All | 66″ | 6 | 17 lbs. | AAL-8012 |
| RAM ProMaster | 101″– High | All | 72″ | 7 | 18 lbs. | AAL-8008 |
| Chevrolet Express & GMC Savana |
84″– Low | All | 54″ | 5 | 16 lbs. | AAL-8015 |
| † Not available for 2006 and older Sprinters. | ||||||
Note: Bright anodized aluminum finish is standard. Optional Black anodized aluminum finish available. Add suffix “-BLK” to model number.
Access Stow
The Access Stow® is a rear-loading ladder rack designed to help commercial fleets and tradespeople transport and access extension ladders. Available in single- and double-ladder configurations, it brings ladders down to ground level at the rear of the vehicle for safer, easier loading and unloading.


Safer Rear Ladder Access
Load and unload extension ladders from behind the vehicle, helping reduce the need to work on the street-facing side during roadside stops.

Ground-level Ladder Handling
The rear-deploying design brings ladders down to ground level for easier access during loading and unloading.

Less Reaching And Climbing
Access stored ladders without climbing onto the vehicle. Access Stow helps reduce overhead reaching and awkward movements during everyday ladder handling.

Durable Aluminum Construction
Built from aluminum, Access Stow provides a durable ladder-carrying solution for daily use by commercial fleets and tradespeople.

Single- Or Double-ladder Configurations
Choose a configuration for one or two extension ladders to suit your crew’s equipment and job requirements.
